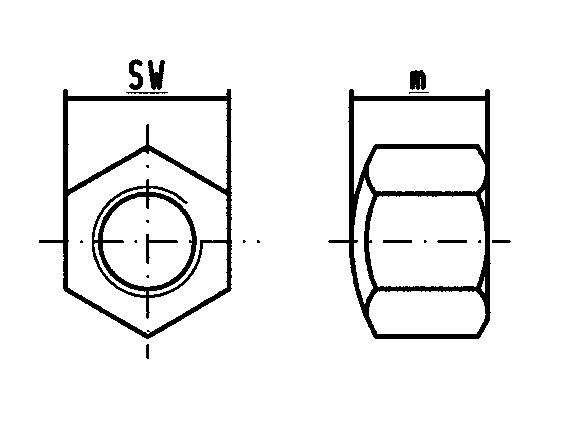

DIN 917 - Hutmutter - flache Form

DIN 917 - Hutmutter flache Form



Abmessung Schlüsselw - SW Höhe - m Einschraubtiefe Lager
M 10 17 mm 14 mm 10.65 mm X
M 10 Ri 17 mm 14 mm 10.65 mm X
M 10 x 1 Ri 17 mm 14 mm 10.65 mm X
M 10 x 1.25 17 mm 14 mm 10.65 mm X
M 12 19 mm 16 mm 13.15 mm X
M 12 x 1 19 mm 16 mm 13.15 mm X
M 12 x 1.25 19 mm 16 mm 13.15 mm X
M 12 x 1.5 19 mm 16 mm 13.15 mm X
M 14 22 mm 18 mm 14.65 mm X
M 14 x 1.5 22 mm 18 mm 14.65 mm X
M 16 24 mm 20 mm 16.65 mm X
M 16 x 1 24 mm 18 mm 16.65 mm X
M 16 x 1.5 24 mm 18 mm 16.65 mm X
M 18 27 mm 22 mm 18.58 mm X
M 18 x 1.5 27 mm 22 mm 18.58 mm X
M 20 30 mm 25 mm 20.58 mm X
M 20 x 1.5 30 mm 25 mm 20.58 mm X
M 20 x 2 30 mm 25 mm 20.58 mm X
M 22 32 mm 28 mm 21.58 mm X
M 22 x 1.5 32 mm 28 mm 21.58 mm X
M 24 36 mm 30 mm 23.58 mm X
M 24 x 1.5 36 mm 30 mm 23.58 mm X
M 24 x 2 36 mm 30 mm 23.58 mm X
M 27 41 mm 32 mm 25.58 mm X
M 30 46 mm 34 mm 27.58 mm X
M 30 x 1.5 46 mm 34 mm 27.58 mm X
M 30 x 2 46 mm 34 mm 27.58 mm X
M 30 x 3 46 mm 34 mm 27.58 mm X
