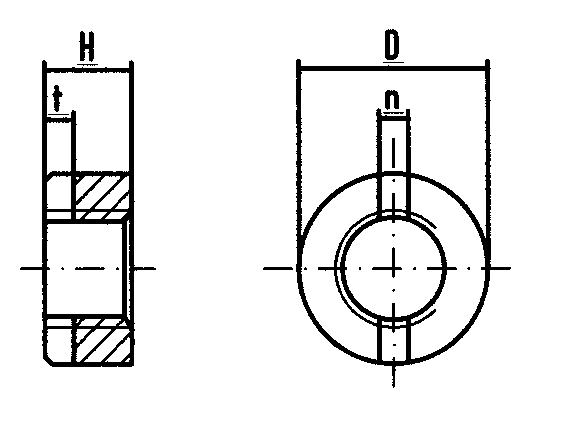

DIN 546 - Schlitzmutter
| Abmessung | Kopf - D | Höhe - H | Sz - n | Sz - t | Lager |
|---|---|---|---|---|---|
| M 8 | 14 mm | 6.5 mm | 3 mm | 2.5 mm | X |
| M 8 x 1 | 14 mm | 6.5 mm | 3 mm | 2.5 mm | X |
| M 10 | 18 mm | 8 mm | 3.5 mm | 3.2 mm | X |
| M 10 x 1 | 18 mm | 8 mm | 3.5 mm | 3.2 mm | X |
| M 12 | 21 mm | 10 mm | 4 mm | 3.8 mm | X |
| M 14 | 24 mm | 11 mm | 4 mm | 3.8 mm | X |
| M 16 | 26 mm | 12 mm | 4 mm | 3.8 mm | X |
| M 16 x 1.5 | 26 mm | 12 mm | 4 mm | 3.8 mm | X |
| M 18 | 29 mm | 13 mm | 4 mm | 4.8 mm | |
| M 20 | 32 mm | 14 mm | 5 mm | 4.8 mm | X |
